Industrial Gear Oils

Castrol Alphasyn PG 220
Brand Logo

VISCOSITY - ISO 220

Castrol Alphasyn PG 220 Synthetic gear oil

open
DESCRIPTION

Castrol Alphasyn PG 220 gear oil is a synthetic lubricant based on polyethylene glycol (PAG) fluids enhanced with antioxidants, rust inhibitors and Extreme Pressure (EP) additives of high thermal stability.

open
APPLICATIONS

Alphasyn PG gear oils are primarily intended for use in worm reduction gear boxes, where the low coefficient of friction of the PAG base fluid improves efficiency and consequently reduces power consumption and operating temperatures. This is particularly important in applications where sliding contact is high. The use of a PAG base stock provides inherently high Viscosity Index (VI) and low pour points making these products suitable for use over a wide temperature range.

Castrol Alphasyn PG 220 meets the requirements of most OEMs that allow the use of PAG-based gear oils.

open
ADVANTAGES

Castrol Alphasyn PG 220 Lubricant Advantages:

  • A low coefficient of friction reduces energy consumption and lowers operating temperatures, this leads to longer oil life.
  • Good thermal and oxidative stability provides reliable operation and extended operating life when compared to mineral oil-based products.
  • Inherently high VI makes the product suitable for operations over a wide temperature range.
  • High load-carrying capacity and good wear protection reduce maintenance.
open
TYPICAL CHARACTERISTICS
Operating temperature Max. 120°C
Viscosity 220 mm/s² at 40°C
Viscosity index 240
Oil type PAG
Product type Lubricating Oils
Applicable to these sectors Aerospace, Automotive Manufacture, Machinery, Metal Goods, Metals, Mining
open
APPROVAL & PERFORMANCE CLAIMS
open
ADDITIONAL INFORMATION

Normal industrial paints are not compatible with these lubricants. Gearboxes should be left unpainted internally, or alternatively should be painted with two component coatings such as epoxy resins. Care must be taken that seal materials are compatible with these lubricants. The recommended materials are nitrile rubber (NBR), silicone (VMQ), fluoro-silicone rubber (FMQ), and fluoroelastomers (FKM). Incompatible materials are likely to shrink or swell, thus causing either severe leakage or seizure of the seal. These products are not miscible with mineral oils.



Download Technical Data Sheet

Download Safety Data Sheet

Contact Us

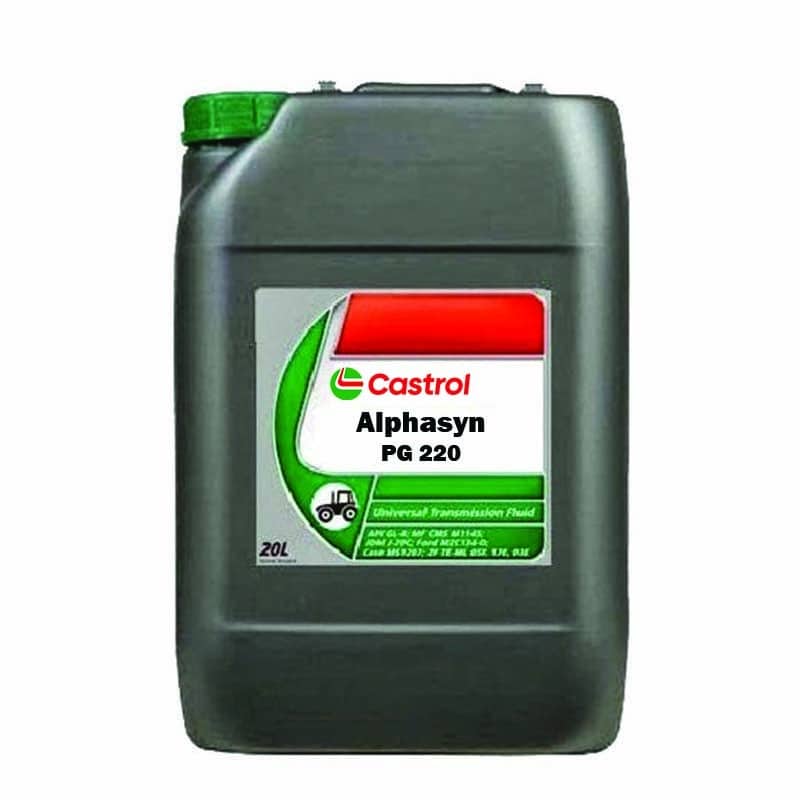

Castrol Alphasyn PG 220 synthetic transmission oil
PACK SIZES AVAILABLE
icon
20L
icon
208L

Request a quote for this product
