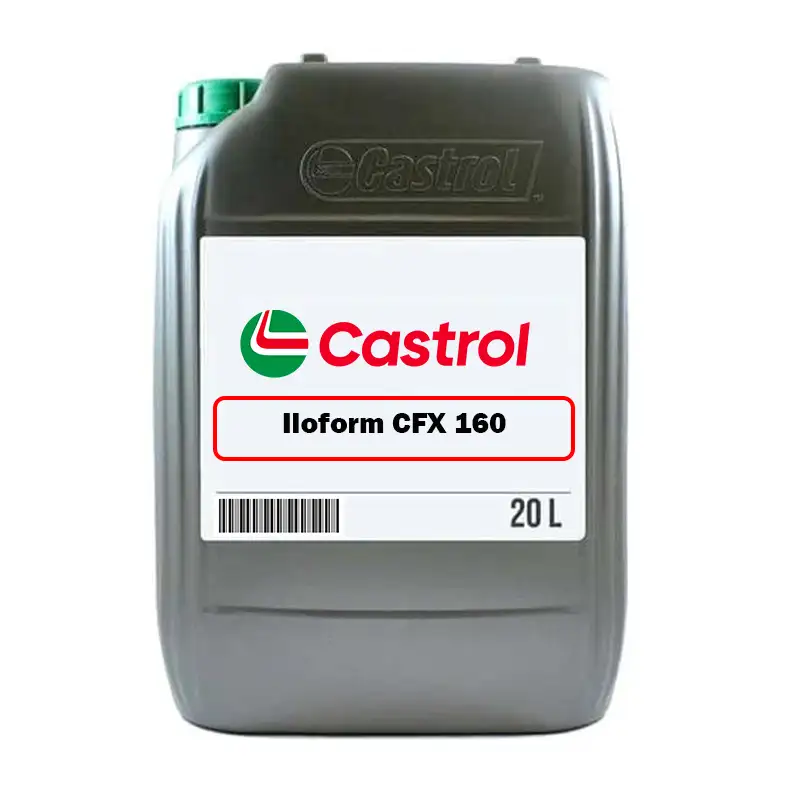

Castrol Iloform CFX 160 High Performance Neat Forming Oil
Castrol Iloform CFX 160 is a premium, medium viscosity neat forming oil. It is based on a novel high-performance, extreme-pressure and lubricity additive package that provides excellent performance without the use of chlorinated additives.
Iloform CFX 160 is designed to be used as a metal deformation lubricant for ferrous materials. The product is particularly recommended for use in heavy duty fine blanking applications of carbon steel, such as spring steel as well as for deep drawing on high alloy steel and stainless steel.
Iloform CFX 160 is also well suited for a wide variety of other forming applications, including heavy duty stamp-bending operations up to 20 mm metal sheet thickness.
Iloform CFX 160 is designed to be used as received.
- Formulated without chlorinated paraffins, which may help to fulfil aspects of legislative and waste treatment requirements that specify that these chemicals are excluded.
- Contains an innovative high-performance extreme-pressure additive package that provides high protection against wear to enable long tool and die life and thus cuts downtime and tooling costs
- Excellent adhesion and wetting properties to provide a homogenous, highly lubricating film. This results in an excellent surface finish and cleanly sheared straight edges, especially on fine blanked components of difficult geometry and sheet metal thickness up to > 10 mm
- Reduces waste disposal cost and minimises corrosion risk compared to chlorinated oils
- Mild odour improves operator acceptance
- Can be removed by using alkaline process cleaners, also available from Castrol
Subject to usual manufacturing tolerances. Iloform CFX 160 is not recommended for use on yellow metals.
| Viscosity | 165 mm/s² at 40°C |
|---|---|
| Density @ 15°C | 0.94 g/ml |
| Flash Point, COC | 152 °C |
| Appearance | Orange – brown liquid |
Health & Safety:
Please refer to the relevant health and safety data sheet, a copy of which is freely available to all our customers.
Storage:
All packages should be stored under cover. Where outside storage is unavoidable, drums should be laid horizontally to avoid the possible ingress of water and the obliteration of drum markings. Products should not be stored above 60°C or exposed to hot sun or freezing conditions.
