Slideway Lubricants

Castrol Magna SW 68
Brand Logo

VISCOSITY - ISO 68

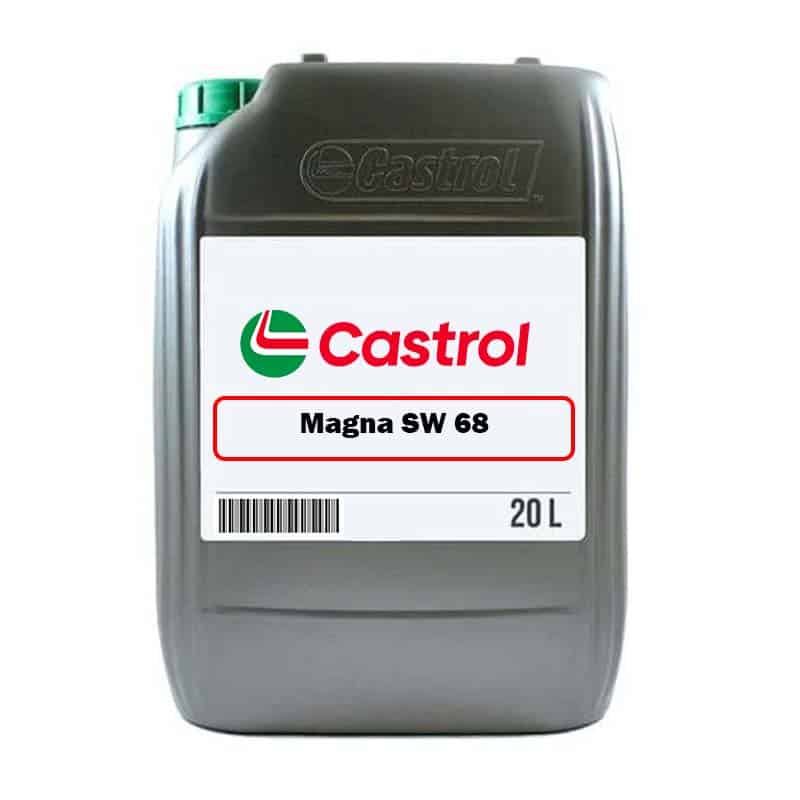

Castrol Magna SW 68 Slideway Oil

open
DESCRIPTION

The Castrol Magna SW Range (previously called Castrol Magna GC 32, BD 68 and CF 220) are specially formulated slideway lubricants which have been developed to provide all-round performance along with the additional benefit of superior stick-slip and load-carrying performance.

Each lubricant in the range combines controlled frictional characteristics along with high film- strength and high load-carrying properties to eliminate machine ‘stick-slip’ characteristics.

open
APPLICATIONS

Introducing the Magna SW family of slideway lubricants.

Magna SW 32 is a light viscosity, combined hydraulic and slideway lubricant. Applications include lightly loaded slideways such as found on small centre lathes and combined hydraulic and slideway systems such as in reciprocating grinding machines.

Magna SW 68 is a medium viscosity slideway lubricant suitable for use in most machine tool lubrication systems specifying an ISO VG 68 oil. It meets Cincinnati Milacron P47 specifications.

Magna SW 220 is formulated for use with heavily loaded slideway applications or where there is a vertical or inclined slideway. It meets Cincinnati Milacron P50 specifications.

open
ADVANTAGES

Castrol Magna SW 68 Slideway Oil Advantages:

  • Good lubricity – prevents stick-slip of slideways.
  • High load carrying capacity – prevents wear of highly loaded slideways.
  • Good demulsification and cutting fluid compatibility – can be used in the presence of water or water-based metalworking fluids.
open
TYPICAL CHARACTERISTICS
Operating temperature Max. 90°C
Viscosity 68 mm/s² at 40°C
Viscosity index 95
Oil type Mineral
Product type Lubricating Oils
Applicable to these sectors Aerospace, Automotive Manufacture, Machinery, Metal Goods, Metals
open
APPROVAL & PERFORMANCE CLAIMS
open
ADDITIONAL INFORMATION

Storage Information:

All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and the obliteration of drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.

Contact Us

Safety Data Sheet

Technical Data Sheet

Castrol Magna SW68 Slideway Lubrication Oil
PACK SIZES AVAILABLE
icon
20L
icon
208L
1000L

Request a quote for this product
