General Lubricating Oils

Castrol Viscogen KL 3 Spray
Brand Logo

VISCOSITY - ISO 3

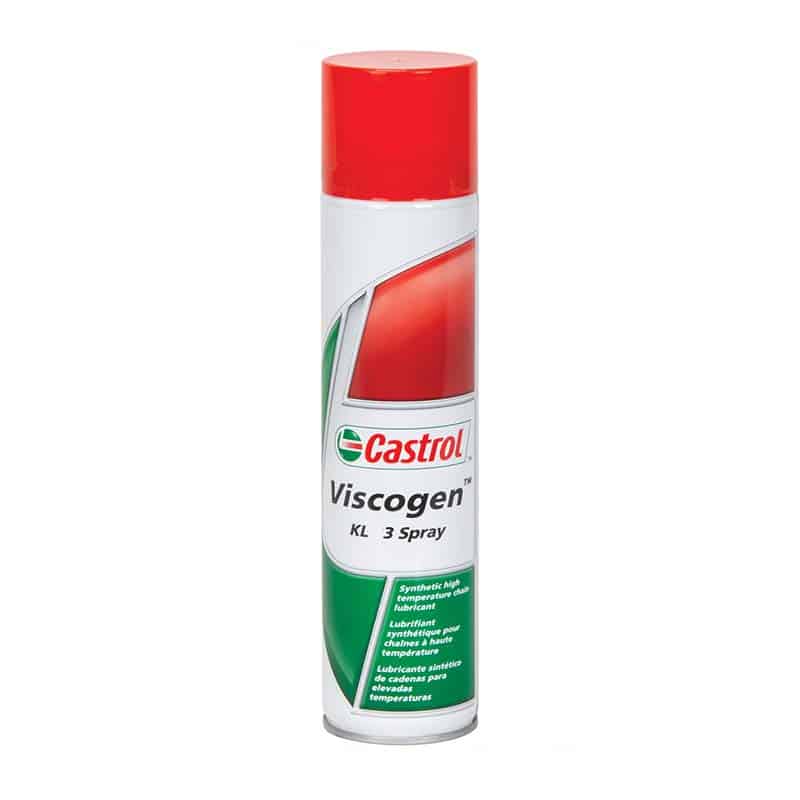

Castrol Viscogen KL 3 Spray Synthetic High Temperature Chain Lubricant

open
DESCRIPTION

Castrol Viscogen KL Spray range are aerosol/spray versions of Viscogen KL 3, 23, 300. In neat state Viscogen KL are thermally stable synthetic lubricants designed for high temperature lubrication in severe environments, where the use of mineral oils or conventional synthetic oils would result in excessive wear, carbonisation and residue formation.

They can be used up to temperatures of +200°C/+390°F, depending on the viscosity. Viscogen KL Sprays have been developed from base fluids which form exceptionally adherent, transparent and odourless lubricating films and an additive system free of solids, metals or silicone which enhances load carrying capability and wear protection.

open
APPLICATIONS

Viscogen KL Spray is available in 3 different versions for use depending on the ambient and operating conditions. Spray versions are particularly suited to lubricate difficult-to-reach lubrication points. The dimensions of the chain as well as its structural shape (e.g. roller, pin, ladder chains, insertion and flat link hoisting chains) are important when selecting the right viscosity.

Viscogen KL Sprays find use in many industrial applications, for example, High-rack storage shelves, bakery machines, paint lines, conveyor chains, tenter frames and dryers, washing plants, underfloor chains, steamers, slashers, baking ovens, slide ways, spindles, ropes, open gear wheels, plastic toothed belts and sheet-fed offset machines.

Viscogen KL 23 is especially suitable for use in BOPP (Biaxially oriented Polypropylene) film stretching machines.

open
ADVANTAGES

Castrol Viscogen KL 3 Spray Synthetic High Temperature Chain Lubricant Product Advantages:

  • Particularly suited to lubricate difficult-to-reach lubrication points.
  • Easy and economical use with an adjustable spray head. Spraying foam remains until oil has penetrated into the friction point.

In neat form (without propellant):-

  • Extremely low evaporation rate, low residue formation and low smoke generation at high temperatures – enabling reduced maintenance, reduced lubricant consumption and better working environments.
  • Outstanding load-carrying ability under severe mechanical loads and high temperatures as well as excellent penetration on chains and wire rope strands – leading to longer chain life.
  • No dripping or throwing off at high speeds or high temperatures – giving reduced lubricant consumption.
  • Excellent rust protection, extraordinary oxidation resistance and no hard carbon build-up – leading to longer chain life and reduced maintenance.
open
TYPICAL CHARACTERISTICS
Operating temperature Max. 240°C
Viscosity index 140
Oil type Ester
Product type Lubricating Oils
Applicable to these sectors Aerospace, Automotive Manufacture, Machinery, Metals, Mining, Power Generation
open
APPROVAL & PERFORMANCE CLAIMS
open
ADDITIONAL INFORMATION

Storage:

All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.

Contact Us

Product Data Sheet

Safety Data Sheet



Castrol Viscogen KL 3 High Temperature chain lubricant oil spray
PACK SIZES AVAILABLE
icon
12 x 400ml Spray
