General Lubricating Oils

Castrol Viscogen KL 9


Castrol Viscogen KL 9 Synthetic High Temperature Chain Lubricant


Castrol Viscogen KL range are thermally stable synthetic lubricants designed for high-temperature lubrication in severe environments, where the use of mineral oils or conventional synthetic oils would result in excessive wear, carbonisation and residue formation.

They can be used up to temperatures of +240°C/+464°F, depending on the viscosity. Viscogen KL has been developed from base fluids which form exceptionally adherent, transparent and odourless lubricating films and an additive system free of solids, metals or silicone which enhances load-carrying capability and wear protection.


Viscogen KL is available in six different viscosities depending on the ambient and operating conditions. The dimensions of the chain as well as its structural shape (e.g. roller, pin, ladder chains, insertion and flat link hoisting chains) are important when selecting the right viscosity. The way the lubricant is applied must also be considered e.g. manual lubrication, drip feed lubricator, central lubrication, sump lubrication or via spray can.

Viscogen KL finds use in many industrial applications, for example, High-rack storage shelves, bakery machines, paint lines, conveyor chains, tenter frames and dryers, washing plants, underfloor chains, steamers, slashers, baking ovens, slide ways, spindles, ropes, open gear wheels, plastic toothed belts and sheet-fed offset machines.

Viscogen KL 23 is especially suitable for use in BOPP (Biaxially oriented Polypropylene) film stretching machines.


Castrol Viscogen KL 9 has the following advantages when compared to conventional chain oils:-

  • Extremely low evaporation rate, low residue formation and low smoke generation at high temperatures – enabling reduced maintenance, reduced lubricant consumption and better working environments.
  • High load-carrying ability under severe mechanical loads and high temperatures as well as excellent penetration on chains and wire rope strands – leading to longer chain life.
  • No dripping or throwing off at high speeds or high temperatures – giving reduced lubricant consumption.
  • Excellent rust protection, extraordinary oxidation resistance and no hard carbon build-up – leading to longer chain life and reduced maintenance.
Operating temperatureMin. 0°C
Max. 240°C
Viscosity100 mm/s² at 40°C
Viscosity index130
Oil typeEster
Product typeLubricating Oils
Applicable to these sectorsAerospace, Automotive Manufacture, Machinery, Metals, Mining, Power Generation


All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.

Contact Us

Product Data Sheet

Safety Data Sheet

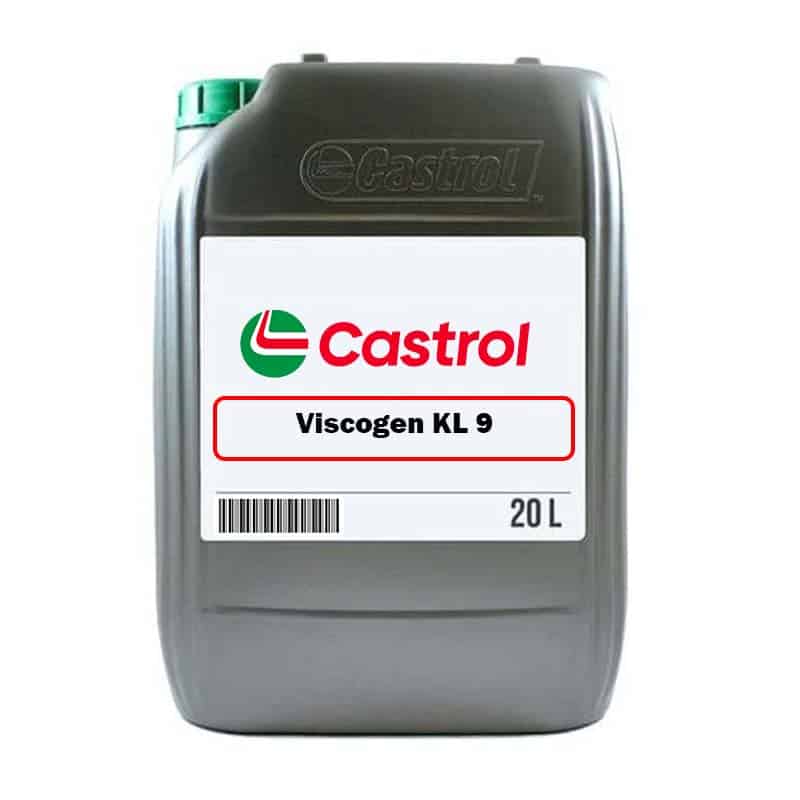

Castrol Viscogen KL 9 High Temperature chain lubricant oil
