ON EV Thermal Fluid BOT 2100 – Keeps batteries cooler, even in extreme conditions. Electric vehicle batteries work hardest when charging and discharging power – up to 10% of transferred power can be lost as heat during charging and acceleration. As electric vehicles advance, batteries will face unprecedented stresses due to developments in ultra-fast charging and vehicle performance. Left unchecked, these factors reduce battery life and charging efficiency.
Next-generation battery electric vehicles are moving to direct cooling for battery thermal management in order to enable fast charging and better performance. Efficient direct cooling requires advanced dielectric thermal management fluid technology to maintain battery performance over the lifetime of the vehicle.

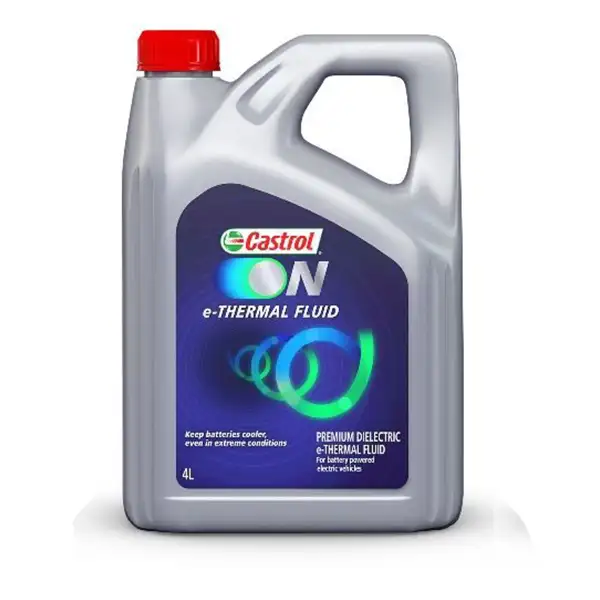

Castrol ON EV Thermal Fluid is a premium dielectric battery thermal management fluid that keeps batteries cooler, even in extreme conditions. This enables ultra-fast charging and helps to extend the life of a battery.
Castrol ON EV Thermal Fluid is a low viscosity fluid designed for electric vehicles with directly cooled battery thermal management systems.
Not for use in indirect, water glycol cooling systems.
Castrol ON EV Thermal Fluid has superior properties to enable improved battery thermal management performance:
- A low viscosity formulation to efficiently transfer heat away from the battery
- Providing optimum heat transfer and battery thermal management under even the most extreme conditions
- Electrical insulation to protect your battery from dangerous short-circuit events
- Resistance to oxidation to maintain performance over many battery charging cycles
| Name | Method | Units | Professional H 5w-30 |
| Viscosity, Kinematic 100C | ASTM D445 | mm²/s | 1.71 |
|
Viscosity, Kinematic 40C |
ASTM D445 | mm²/s | 5.12 |
|
Flash Point, PMCC |
ASTM D93 | °C | 159 |
|
Pour Point |
ASTM D97 | °C | -75 |
|
Density @ 15.6°C |
ASTM D4052 | kg/m3 | 797 |
|
Water Content ppm |
ASTM D6304 | ppm | 35 |
|
Electrical Conductivity |
DIN EN 60247 mod. Flucon Epsilon+ | pS/m | <35 |
| Specific heat capacity @ 20°C | Specific heat capacity @ 20°C | kJ/kgK | 2.03 |
| Thermal conductivity @ 20°C | Flucon Lambda, in house according to ASTM D7896 | Flucon Lambda, in house according to ASTM D7896 | 0.139 |
| Dielectric constant @ 25°C | ASTM D924 | – | 2.06 |
| Particle Count | ISO 4406 | – | 15/12/07 |
All packages should be stored under cover in dry conditions. Products should not be stored above 60°C, exposed to hot sun or freezing conditions. Keep container tightly closed and sealed until ready for use. Containers that have been opened must be carefully resealed to prevent leakage and contamination of the product from the environment. Avoid significant changes in temperature to prevent humidity ingress. Do not store for longer than three years from the manufacturing date.
Health & Safety:
Please refer to the relevant health and safety data sheet, a copy of which is freely available to all our customers.
